Sigma SI-G12 PRO Fixed Under Vehicle Surveillance System (UVSS) – IP68 Waterproof Vehicle Inspection Scanner
The Sigma SI-G12 PRO is an advanced Fixed Under Vehicle Surveillance System (UVSS) designed for high-security vehicle inspection and undercarriage threat detection. Featuring high-resolution imaging, IP68 waterproof protection, a 90MP CCD line scan camera, and real-time monitoring, it provides reliable vehicle screening for government facilities, airports, military bases, and critical infrastructure.
Share :
- Category
- Product SKU
- : VEHICLE SCANNER
- : SI-G12 PRO
Description
Technical Specifications
| Specification | Details |
|---|---|
| Scanning Technology | Auto Digital Line Scan |
| Image Resolution | 12000 × 7500 Pixels |
| Camera | 90MP CCD Line Scan Camera |
| Response Time | 2 – 3 Seconds |
| Vehicle Speed | 0 – 30 km/h (Recommended) |
| Maximum Load Capacity | 50 Ton |
| Waterproof Rating | IP68 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0% – 95% (No Condensation) |
| Communication | Gigabit Ethernet |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Power Consumption | ≤60W |
| Housing Material | SUS Stainless Steel Frame |
| Installation | Fixed (Flush Mount) |
| Image Color | 24-bit Full Color |
| Image Format | JPG / BMP |
| System Integration | SDK / API Support |
Key Features
✅ High-Resolution Undercarriage Imaging
✅ 90MP CCD Line Scan Camera
✅ 12000 × 7500 Image Resolution
✅ Fast Response Time (2-3 Seconds)
✅ Wide Vehicle Compatibility
✅ Real-Time Monitoring & Recording
✅ Automatic Image Saving
✅ Image Analysis & Comparison
✅ Zoom, Crop & Annotation Support
✅ IP68 Waterproof Protection
✅ SUS Stainless Steel Frame
✅ 50 Ton Load Capacity
✅ Gigabit Ethernet Communication
✅ SDK & API Integration Support
Sigma SI-G12 PRO Fixed Under Vehicle Surveillance System (UVSS)
The Sigma SI-G12 PRO is a high-performance Fixed Under Vehicle Surveillance System engineered to provide fast, accurate, and reliable vehicle undercarriage inspection. Designed for critical security applications, the system captures high-resolution images of vehicle undersides to detect hidden threats, suspicious objects, and vehicle modifications.
Equipped with a powerful 90MP CCD Line Scan Camera, the SI-G12 PRO delivers crystal-clear undercarriage imaging with a resolution of 12000 × 7500 pixels, ensuring superior inspection accuracy and threat detection capabilities.
Its rugged IP68 waterproof stainless-steel design and 50-ton load capacity make it suitable for continuous operation in harsh outdoor environments, including airports, government buildings, military bases, industrial facilities, and security checkpoints.
The system provides real-time monitoring, image analysis and management, and supports automatic image saving and comparison for enhanced security operations.
Applications
- Embassies & Government Buildings
- Military Bases
- Security Checkpoints
- Airports
- Industrial Facilities
- Parking Facilities
- Border Control Points
- Critical Infrastructure
- Ports & Logistics Centers
- VIP Security Installations
Dimensions
| Dimension | Size |
|---|---|
| Length | 1170 mm |
| Width | 260 mm |
| Height | 80 mm |
Why Choose Sigma SI-G12 PRO?
- High-resolution vehicle undercarriage inspection
- Instant threat detection and analysis
- Rugged IP68 waterproof construction
- Heavy-duty 50-ton load-bearing design
- Real-time monitoring and image management
- Easy integration with existing security systems
- Fast 2-3 second inspection response
- Designed for 24/7 continuous operation
- Korean technology with global support

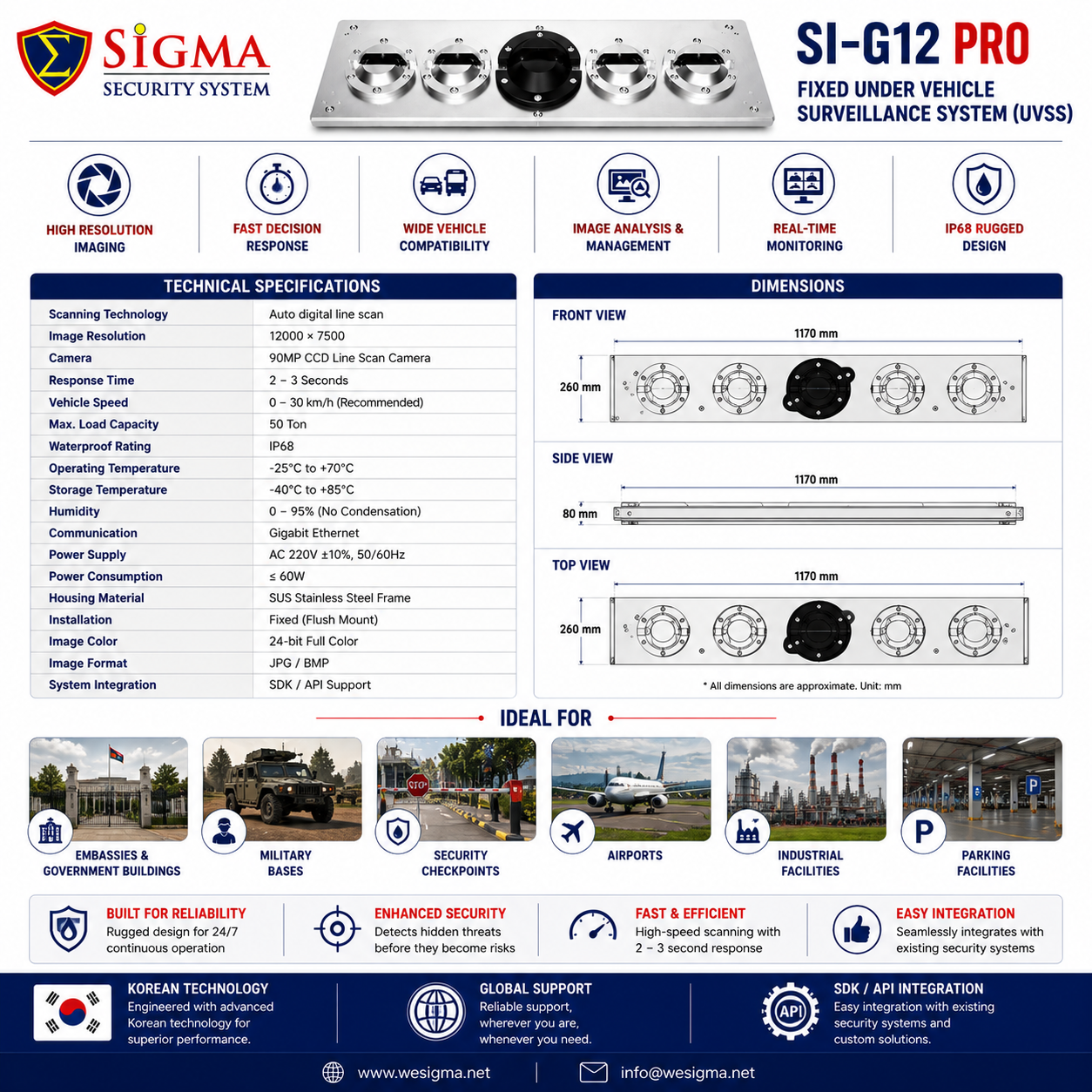

Product Brochure: Sigma Si-G12pro Fixed Under Vehicle Surveilance System
