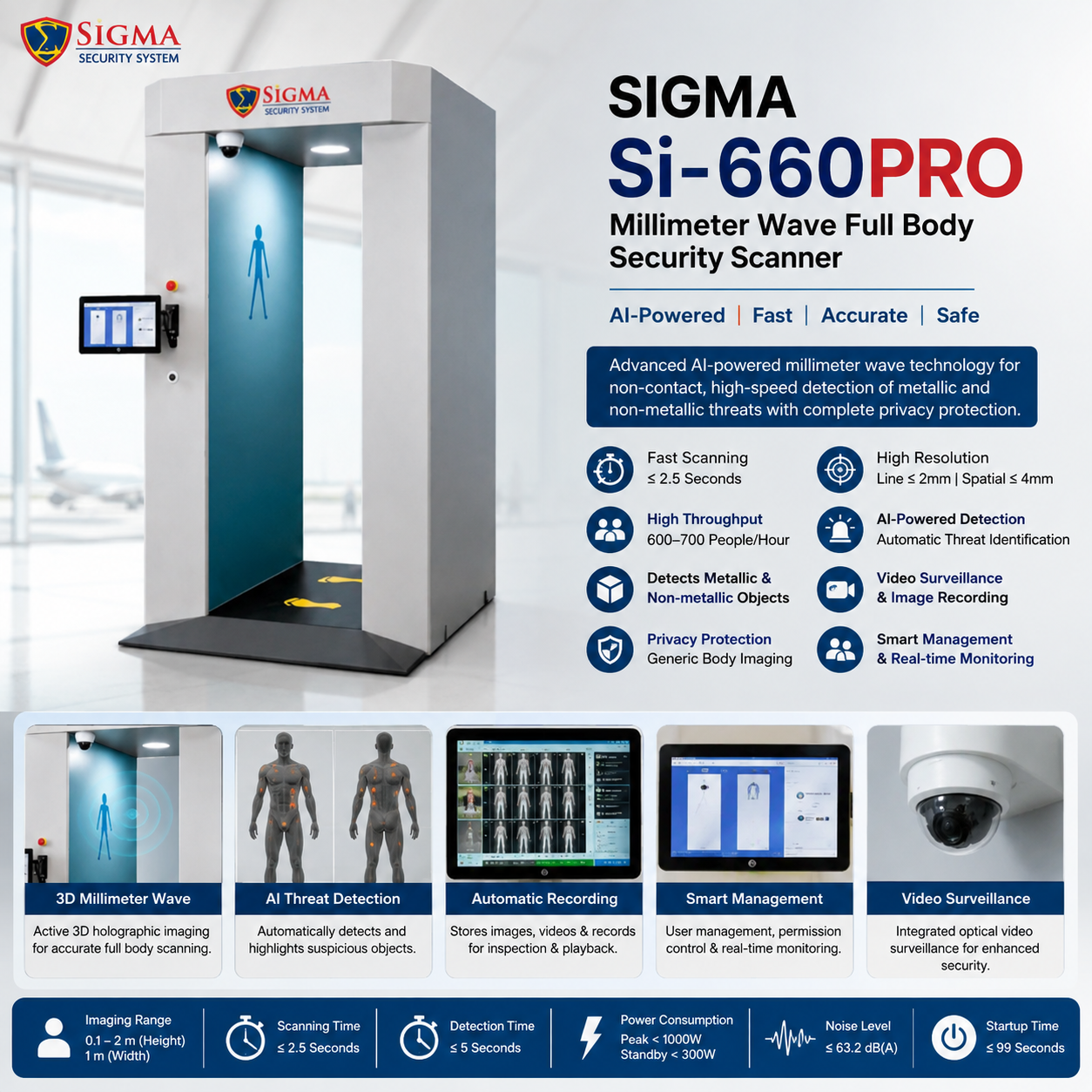

Sigma Si-660PRO Millimeter Wave Full Body Security Scanner

The Sigma Si-660PRO Millimeter Wave Full Body Security Scanner is an AI-powered security screening system designed for fast, accurate, and non-contact inspection of people in high-security environments. Using advanced active millimeter-wave 3D holographic imaging technology, the scanner detects both metallic and non-metallic concealed objects while protecting individual privacy through generic body imaging and face-blurring technology. With a scanning time of less than 2.5 seconds and a throughput of up to 700 people per hour, it is ideal for airports, railway stations, correctional facilities, government buildings, and major public venues.

Share :

Description

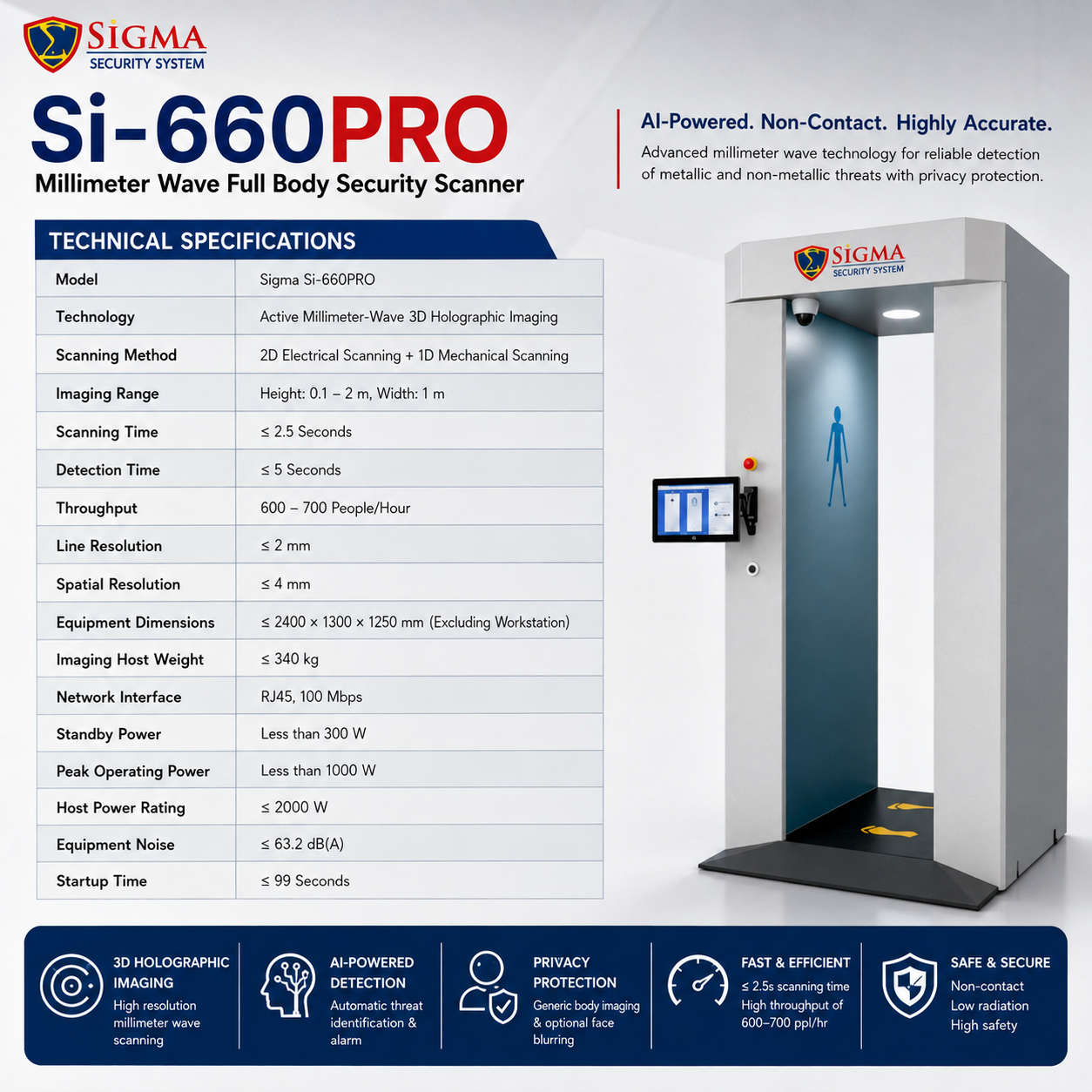

Technical Specifications of Sigma Si-660PRO Millimeter Wave

Specification Details
Model Sigma Si-660PRO
Technology Active Millimeter-Wave 3D Holographic Imaging
Scanning Method 2D Electrical Scanning + 1D Mechanical Scanning
Imaging Range Height: 0.1–2 m, Width: 1 m
Scanning Time ≤2.5 seconds
Detection Time ≤5 seconds
Throughput 600–700 people/hour
Line Resolution ≤2 mm
Spatial Resolution ≤4 mm
Equipment Dimensions ≤2400 × 1300 × 1250 mm (excluding workstation)
Imaging Host Weight ≤340 kg
Network Interface RJ45, 100 Mbps
Standby Power Less than 300 W
Peak Operating Power Less than 1000 W
Host Power Rating ≤2000 W
Equipment Noise ≤63.2 dB(A)
Startup Time ≤99 seconds

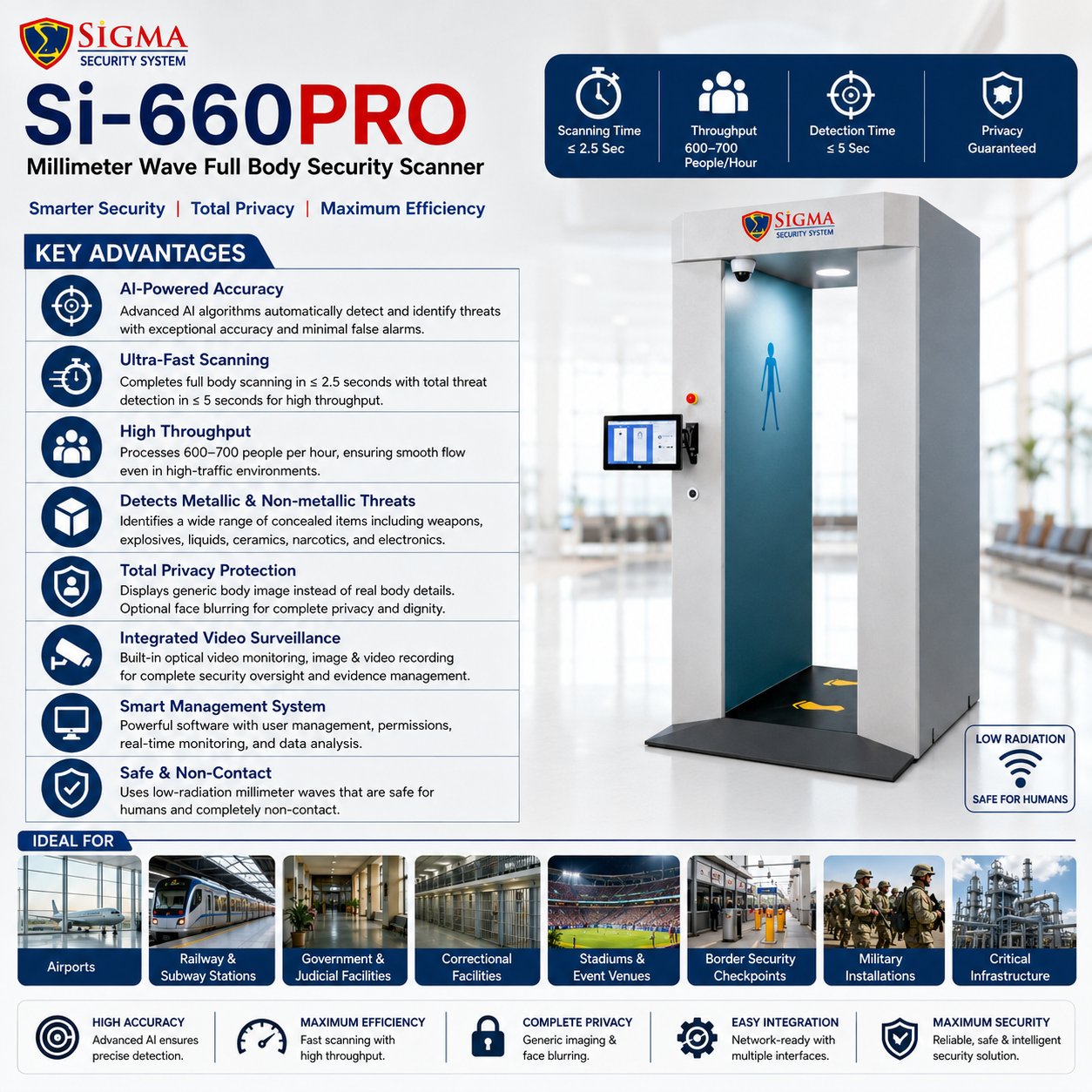

Key Features

  • AI-powered automatic threat detection
  • Active millimeter-wave full body scanning
  • Detects metallic and non-metallic objects
  • Non-contact security inspection
  • High-resolution 3D holographic imaging
  • Front and back body imaging
  • Automatic object location marking
  • Audible alarm notification
  • Generic body display for privacy protection
  • Optional face-blurring technology
  • Automatic image and video recording
  • Inspection record management (5,000+ records)
  • Real-time equipment monitoring
  • Network connectivity and remote management
  • Optical video surveillance integration
  • High passenger throughput
  • Low millimeter-wave radiation
  • User and administrator permission management

Applications

  • Airports
  • Railway Stations
  • Subway Stations
  • Government Buildings
  • Judicial Facilities
  • Correctional Facilities
  • Large Event Venues
  • Stadiums
  • Border Security Checkpoints
  • Military Installations
  • Critical Infrastructure
  • High-Security Facilities

Product Description

The Sigma Si-660PRO Millimeter Wave Full Body Security Scanner is a next-generation security screening solution designed to meet the growing demands of modern security environments. Developed using advanced active millimeter-wave 3D holographic imaging technology and intelligent AI-powered threat detection, this innovative scanner delivers fast, accurate, and completely non-contact security inspections while maintaining the highest standards of passenger safety and privacy. It is an ideal solution for airports, government facilities, correctional institutions, transportation hubs, military installations, border checkpoints, and other high-security locations where efficient screening and reliable threat detection are essential.

Unlike traditional walk-through metal detectors that can only identify metallic objects, the Sigma Si-660PRO is capable of detecting both metallic and non-metallic concealed items hidden underneath clothing. The system accurately identifies a wide range of prohibited objects, including firearms, knives, ceramic weapons, explosives, liquid explosives, narcotics, chemicals, cash, electronic devices, USB drives, and other dangerous or prohibited materials. This comprehensive detection capability significantly enhances security by identifying threats that conventional metal detectors may overlook.

One of the most impressive features of the Sigma Si-660PRO is its exceptional scanning speed. The system completes a full-body scan in less than 2.5 seconds, while the complete inspection and threat analysis process is finished within 5 seconds. This rapid performance enables the scanner to process approximately 600 to 700 individuals per hour, making it an excellent choice for busy facilities that require continuous passenger flow without compromising security standards. The high throughput minimizes waiting times while maintaining accurate and reliable screening results.

Privacy protection is another key advantage of the Sigma Si-660PRO. Instead of displaying detailed anatomical images, the scanner generates a generic body outline that highlights only the location of suspicious objects. This privacy-focused imaging ensures that personal dignity is respected throughout the inspection process. For organizations with even stricter privacy requirements, the system also supports optional face-blurring technology, providing an additional layer of confidentiality while maintaining effective threat detection capabilities.

By combining AI-powered object recognition, advanced millimeter-wave imaging, high-speed screening, privacy-focused inspection, and comprehensive security management, the Sigma Si-660PRO Millimeter Wave Full Body Security Scanner sets a new benchmark for modern security screening technology. It provides organizations with a reliable, intelligent, and efficient solution for detecting concealed threats while ensuring a safe, seamless, and respectful screening experience for every individual.

Available at kigalismartsolutions and atozsecurityequipment

Product Brochure: Sigma Si-660pro Millimeter Wave Scanner
